177230本特利振动变送器|振动探头
    发布时间: 2018-08-09 08:25

本特利振动变送器(Seismic Transmitter)177230系列,不建议用于连锁功能条件下的使用。


本特利振动变送器(Seismic Transmitter)177230系列,
不建议用于连锁功能条件下的使用。
Bently Nevada* Asset Condition Monitoring,177230振动变送器|振动探头
177230-01-01-05,177230-00-01-05,177230-00-02-05,177230-01-02-05,177230-02-01-05,177230-02-02-05,177230-01-01-CN,177230-01-02-CN

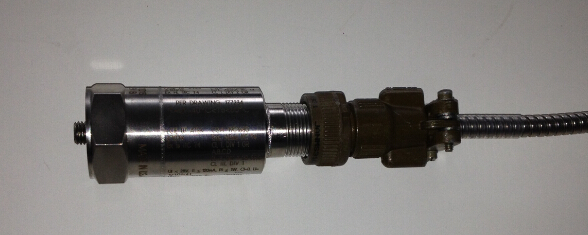

Seismic Transmitter 177230

177230振动变送器|振动探头

Bently Nevada* Asset Condition Monitoring

Description
The 177230 Seismic Transmitter combines a reliable basic protection solution with the support and service of GE products. The transducer is a simple, loop-powered device whose ease of installation and maintenance may reduce training and service costs. When integrated into the PLC or controls system of an overall plant asset condition monitoring solution, the transducer will help you better manage downtime, optimize maintenance planning, and avoid unforeseen catastrophic failures of machinery assets.

Features of the 177230 Seismic Transducer include:
•Ease of implementation and use
-Interfaces with PLCs and control systems (like DCS and SCADA)
-Provides a qick learning curve for operations and maintenance –through a familiar interface similar to that for connecting other PLC or control system inputs
-Requires no field configuration or adjustments
-Needs few additional parts for a complete system
-Includes technical support for customers on how to monitor their equipment
-Includes self-test
-Incorporates protected interface
-Supports a variety of interface cables
•Data Quality
-Provides accurate and repeatable data
-Uses simple data format
-Provides raw vibration signal for verification and analysis
•EHS Compliant
-Implements safe and ergonomic design
-Supports access to hazardous areas
•Incorporates robust CM design for reliability
•Implements Industry standard 4 to 20mA loop-powered transmitter

Approvals
North America:
Ex nL, IIC T4
AEx nA IIC T4
Class I, Div 2, Groups A, B, C, D
Ex ia, IIC T4
AEx ia IIC T4
Class I, Div 1, Groups A, B, C, D;
Class II, Div 1, Groups E, F, and G;
Class III, Div 1

Europe:
Ex nL IIC T4
Ui ≤ 28V, Ii ≤ 120 mA, Pi ≤ 1W,
Ci ≈ 0, Li ≤ 121.06 μH


由于产品技术的发展,原有177230-02型号不再订购,从2014年10月开始,订购信息变更如下:
177230-AA-BB-CN
Option Descriptions

AA: Measurement Range
0 0      0 – 12.7 mm/s (0 – 0.5 in/s)
0 1      0 – 25.4 mm/s (0 – 1.0 in/s)
0 2      0 – 50.8 mm/s (0 – 2.0 in/s)

BB: Frequency
0 1      10 Hz to 1 kHz (600 to 60 kcps) rms
0 2      3 Hz to 1 kHz (180 to 60 kcps) pk

CC: Approvals
C N     Multiple Approvals (CSA, ATEX, and IECEx)
